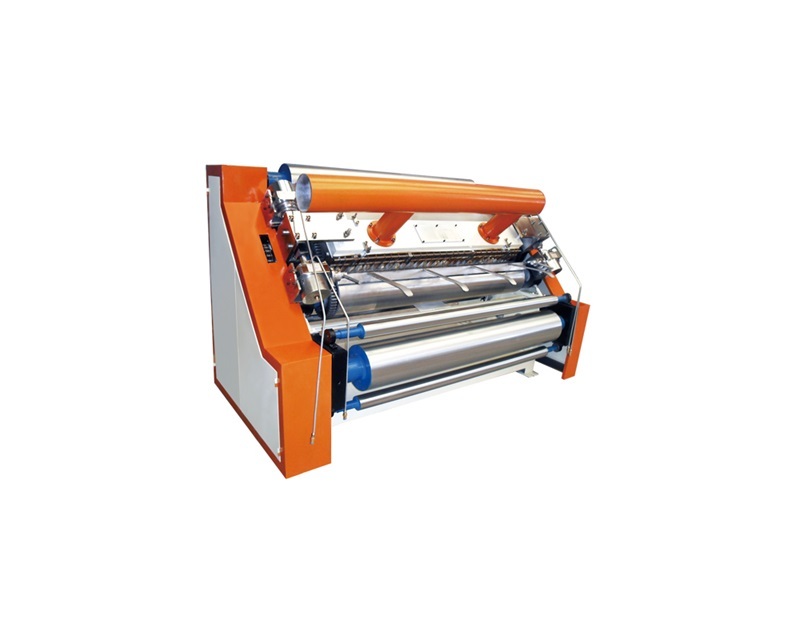

FSFL-280 Fingerless Type Single Facer

  • Detail
  • Parameters

Main Features:

◆ Design speed: 80m/min.

◆ Working width: 900mm-1800mm.

◆ Flute profile: A、C、B、E available.

◆ Heating System: Steam / Hot oil / Electric.

◆ Chain drive system.

◆ Pneumatic control of lifting and lowering of

the upper roll ,press roll and gluing roll.

◆ Vacuum suction guiding of paper provide

perfect flute shape in high speed, blast vol-

ume controller is equipped.

◆ The bearings of corrugated rolls and press

rolls are lubricated by high temperature lubricating grease.

◆ Auto-circulating glue feeding system is provided.

◆ The corrugated roll is made of special alloy steel with grinding process

and induction with hardness of HRC56-60.

◆ Anilox glue roll is hard chrome plated.
