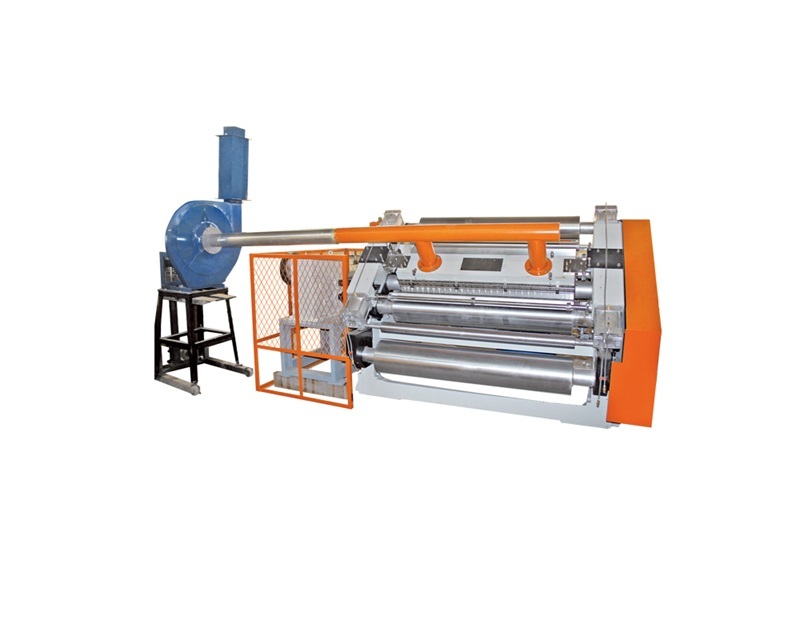

FSFL-H-280/320/360 Fingerless Type Single Facer

FSFL-H-280/320/360 Fingerless Type Single Facer

share

FSFL-H-280/320/360 Fingerless Type Single Facer

  • Detail
  • Parameters

Main Features:

◆ Design speed: 100m-150m/min.

◆ Working width: 900mm-2200mm.

◆ Flute profiles: A、C、B、E or as per customer choice.

◆ Heating System: Steam / Hot oil / Electric.

◆ Vacuum suction system provide perfect flute shape,.

◆ Separate upper and lower roll from the main machine, with guide way equipped to the bridge,easy to change rolls.

◆ Flooding system lubrication of the reduction gearbox, three axis gimbal transmission, isolated power supply, frequency converter control of the main unit.

◆ Pneumatic control of the upper roll, press roll and gluing roll.

◆ The bearings of corrugated rolls and press rolls are lubricated by high temperature lubricating grease.

◆ Auto rotating glue roll while the main motor stop to avoid the glue drying .

◆ Motorized digital read out device , auto adjustment of the glue application.

◆ The corrugated roll is made of special alloy steel with grinding process and hardened with hardness of HRC56-58.

◆ Anilox glue roll is hard chrome plated.
